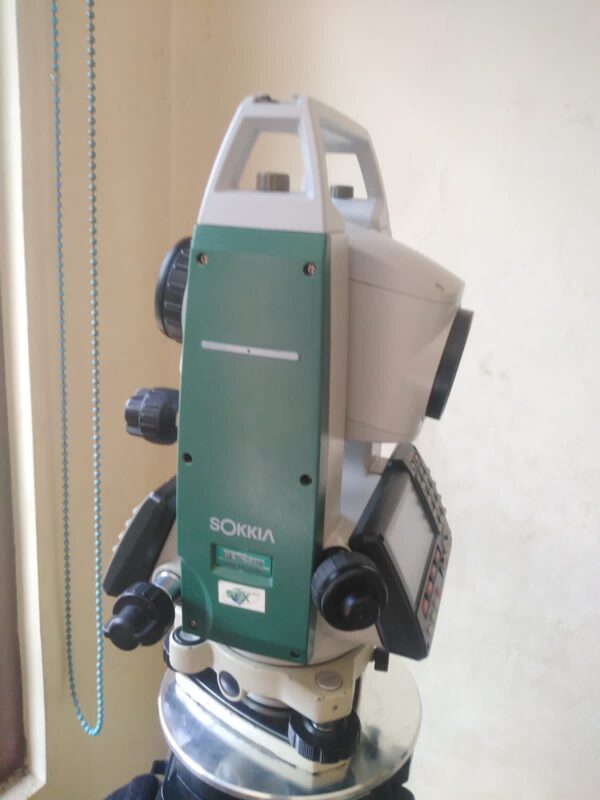

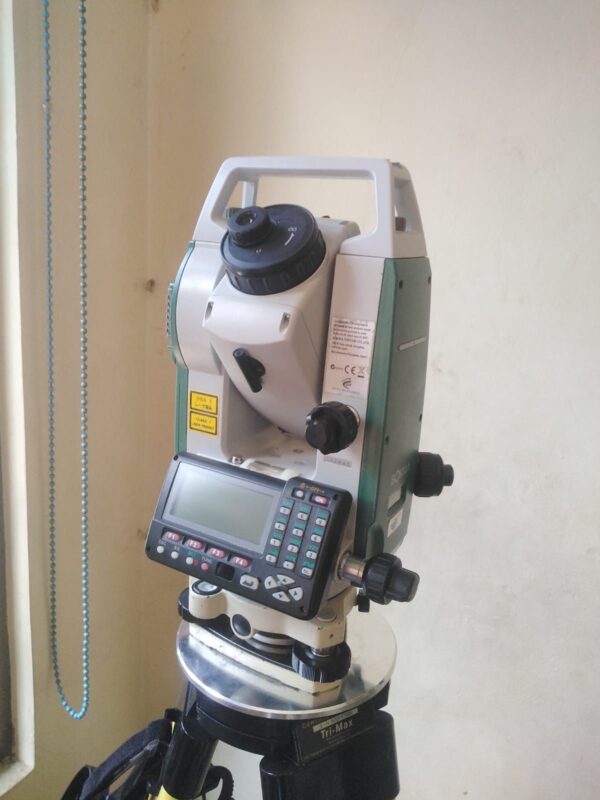

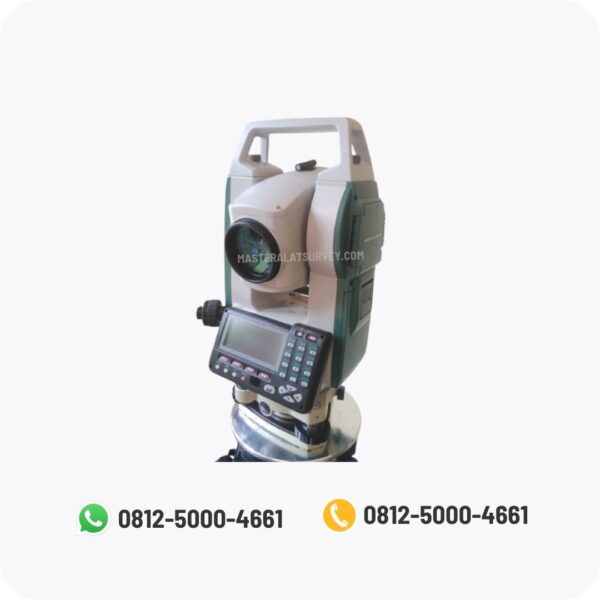

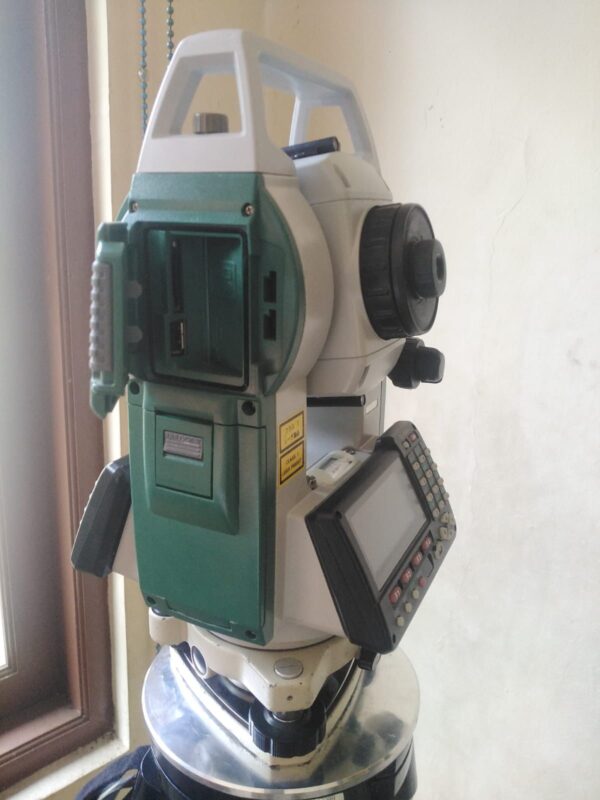

Total Station Sokkia SET 250x Second (Bekas) memberikan kinerja yang sangat dapat diandalkan dengan biaya terjangkau. Jangkauan pengukuran yang diperluas, peningkatan kecepatan pengukuran, akurasi yang telah terbukti di lapangan, keandalan dalam segala cuaca, perangkat lunak onboard canggih yang mudah digunakan, dan beragam kemampuan manajemen data — semua fitur canggih dikemas dalam bodi yang tangguh dan kompak.
■ High-Speed, Long-Range Laser EDM
Sokkia’s advanced digital signal processing technology significantly enhances distance measurement capability that maximizes work efficiency under all jobsite conditions.
- 7 seconds typical measurement time in fine mode -40% faster than previous models
- Every 3 seconds high-speed tracking
- 5,000m (16,400ft.) long range measurement -20% further than previous models
- 2mm + 2ppm accuracy with prism 3mm + 2ppm with reflective sheets
■ World-proven, Time-tested Angle Reading System
Sokkia’s innovative absolute encoder system provides unsurpassed, extra long-term dependability that has been proven in all types of worksite conditions across the globe since its introduction in 2002.
- Extremely simplified optical and mechanical structure maximizes reliability even in the harshest environmental
- Advanced coding and digital processing technologies have given the Series50X the capability to automatically detect and correct misreading of encoder
- The 2” model incorporates IACS (Independent Angle Calibration System) for maximizing
■ Highest Protection against Dust and Water
Fine dust or driving rain is no deterrent to the Series50X. The industry- leading IP66 protection provides unparalleled dependability in the harshest work site conditions.
Dust-tight
- IP6x is the highest grade of protection against ingress of solid foreign
- Shuts out powder dust, sand, mud and other fine
Water-protection
- IPx6 rating means the instrument is protected against powerful water jets from any
- Does not allow penetration of sudden shower or dripping water in tunnels and underground sites,
■ Quick Operation in All Conditions
Easy-to-use control panel is clearly viewable both in direct sunlight and in underground construction sites.
- The LCD display automatically maintains optimal contrast and visibility using a built-in temperature
- Fully backlit keys greatly facilitate operation in low lighting
- The SF14 full-alphanumeric wireless keyboard is optionally available for 2”, 3” and 5”
■ Security and Data Management
- Password function prevents unauthorized
- 10,000-point internal memory
- SD/SDHC card
- USB flash memory devices
- An optional built-in Bluetooth® module for wireless connection with a data
■ Built-in Laser Plummet (option)
Built-in laser plummet allows for quick instrument setting. 5 brightness levels are selectable for optimum visibility.
Spesifikasi Total Station Sokkia SET 250x
| Model | SET250X | SET350X | SET550X | SET650X | |
| Telescope | Fully transiting, coaxial sighting and distance measuring optics | ||||
| Magnification / Resolving power | 30x / 2.5″ | 26x / 3.5″ | |||
| Others | Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30′ (26m/1,000m), Minimum focus: 1.3m (4.3ft.), Reticle illumination: 5 brightness levels | ||||
| Angle measurement | Absolute rotary encoder scanning, both circles adopt diametrical detection | ||||
| Display resolution | 1″ / 5″, 0.0002 / 0.001gon, 0.005 / 0.02mil, selectable | ||||
| Accuracy (ISO 17123-3:2001) | 2″ / 0.6mgon / 0.01mil | 3″ / 1mgon / 0.015mil | 5″ / 1.5mgon / 0.025mil | 6″ / 1.9mgon / 0.03mil | |
| IACS (Independent Angle Calibration System) | Provided | – | |||
| Measurement mode | H | Clockwise / Counterclockwise, 0 set, Hold, Angle input, Repetition | |||
| V | Zenith 0 / Horizontal 0 / Horizontal 0± / Slope in % | ||||
| Dual-axis compensator / Collimation compensation | Dual-axis liquid tilt sensor, working range: ±6′ (±111mgon) / Collimation compensation provided | ||||
| Fine motion screws | 2-speed motion | 1-speed motion | |||
| Distance measurement | Modulated laser, phase comparison method with red laser diode (690nm) | ||||
| Laser output*1 | Class 1 | ||||
| Measuring range (under average conditions*2) | One AP prism | 1.3 to 3,500m (4.3 to 11,480ft.) / Under good conditions*4: 1.3 to 4,000m (13,120ft.) | |||
| Three AP prisms | to 4,500m (14,760ft.) / Under good conditions*4: to 5,000m (16,400ft.) | ||||
| Mini prisms | CP01: 1.3 to 1,000m (3,280ft.), OR1PA: 1.3 to 600m (1,960ft.) | ||||
| Reflective sheet*3 | RS90N-K: 1.3 to 150m (4.3 to 490ft.), RS50N-K: 1.3 to 60m (4.3 to 190ft.), RS10N-K: 1.3 to 25m (4.3 to 82ft.) | ||||
| Unit | Meter, Foot, Foot + inch, US foot, US foot + inch | ||||
| Display resolution | Fine/Rapid: 0.001m / 0.01ft. / 1/8in. Tracking: 0.01m / 0.1ft. / 1/2in. | ||||
| Accuracy*2 (ISO 17123-4:2001) | Prism | (2 + 2ppm x D) mm | |||
| Reflective sheet*3 | (3 + 2ppm x D) mm | ||||
| Measuring mode | Fine (single / repeat / average), Rapid (single / repeat), Tracking | ||||
| Measuring time*5 | Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s) | ||||
| Corrections | Earth curvature & refraction (K=0.142/0.20/none) / Sea level correction / Scale factor (0.5 to 2.0) | ||||
| Interface and Data management | |||||
| Display | Graphic LCD, 192 x 80 dots, backlight, contrast adjustment | ||||
| Keyboard | Alphanumeric keyboard, 27 keys with backlight | ||||
| Control panel location | On both faces | On one face | |||
| Wireless keyboard SF14 (option) | Full alphanumeric keyboard with infrared communication | – | |||
| Data storage | Internal memory | Approx. 10,000 points | |||
| Plug-in memory device | SD card and SDHC card (max. 4GB) USB flash memory (max. 4GB) | ||||
| Interface | Serial RS-232C (baud rate: 1,200 to 38,400bps) | ||||
| Bluetooth modem (option)*6 / SFX data transfer | Bluetooth Class 2, Ver.1.2. / SFX data transfer via Bluetooth connection with a cellular phone supporting GPRS | ||||
| General | |||||
| Levels | Plate level | 30″ / 2mm | 40″ / 2mm | ||
| LCD display | Graphic display range: ±6′ (inner circle) , Digital display range: ±6’30” | ||||
| Circular level | 10′ / 2mm | ||||
| Laser plummet (option) | Red laser diode (635nm±10nm), Beam accuracy: =<[email protected], Class 2 laser product | ||||
| Optical plummet | Magnification: 3x, Minimum focus: 0.3m (11.8 in.) from tribrach bottom | ||||
| Dust and water protection / Tribrach | IP66 (IEC 60529:2001) / Detachable tribrach (WA200) | ||||
| Operating temperature | -20 to +50ºC (-4 to +122ºF) | ||||
| Storage temperature | -30 to +70°C (-22 to +158°F) | ||||
| Size with handle & battery | W166 x D180 x H341mm(W6.5 x D7.1 x H13.5 in.) | W166 x D173 x H341mm (W6.5 x D6.8 x H13.5 in.) | |||
| Weight with handle & battery | 5.5kg (12.1 lb.) | 5.4kg (11.9 lb.) | 5.3kg (11.7 lb.) | ||
| Power supply | |||||
| Battery BDC46B detachable battery | Li-ion rechargeable battery (7.2V, 2.45Ah), two batteries included in 2″, 3″, 5″ models, one for 6″ model | ||||
| Operating time (distance & angle)*7 | BDC46B detachable battery | Approx. 8.5 hours, approx. 12.5 hours in angle measurement only | |||
| External battery (option)*8 | BDC60: approx. 25 hours, BDC61: approx. 50 hours | ||||
| External power*8 Input voltage | 6.7 to 8.0V DC | ||||
| Automatic power cut-off | 5/10/15/30 minutes after operation / none, selectable | ||||
| Software | |||||
| Onboard programs | Resection, 3D Coordinate Measurement, Setting-out, Set-out Line, Set-out Arc, Point Projection, Intersection, Traverse Adjustment, Single-distance offset, Two-distance offset (hidden point), Offset-angle, MLM (Missing Line Measurement), REM (Remote Elevation Measurement), Area Calculation | ||||
Bilih peryogi brosur mangga download disini >> klik disini
Kelangkapan :
- 2x Alumunium Tripod
- 1x Prisma Polygon
- 1x Prisma Single
- 1x Range Pole
Garansi 6 Bulan Kalibrasi
Stok Terbatas.
Update info harga langsung kontak admin 0812-5000-4661
