Deskripsi
Deskripsi
| Berat | 35000 gram |
|---|---|
| SKU | TKS202 |
| Kategori | Total Station |

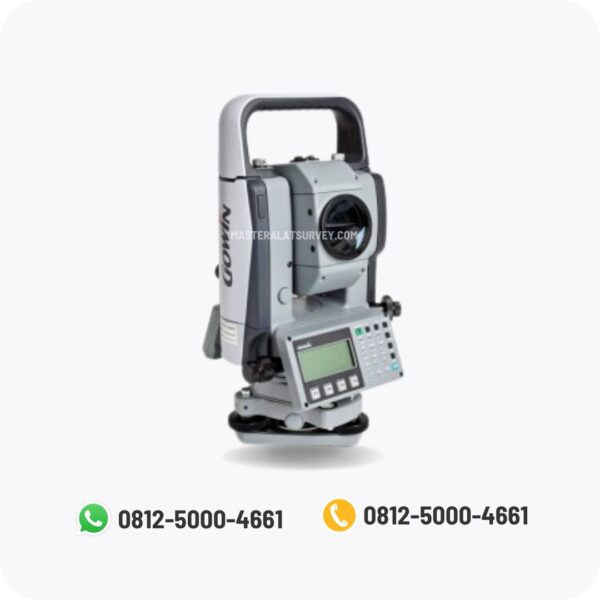

Total Station Gowin TKS 202 Akurasi Gowin Total Station 2″ Dengan keunggulan manufaktur yang optimal dari Topcon, GOWIN memastikan bahwa setiap proses produksi dari total station TKS-202 sesuai dengan standar internasional dan menjalani kontrol kualitas yang ketat.
Dari eksperimen EDM yang sepenuhnya otomatis, hingga pengujian tanpa gangguan selama 48 jam dalam kondisi lingkungan yang ekstrem, total station GOWIN menunjukkan daya tahan dan pengoperasian yang unggul, menunjukkan komitmen GOWIN terhadap peningkatan berkelanjutan.
Total Station Gowin TKS-202 cocok untuk semua pekerjaan yang membutuhkan akurasi dan fleksibilitas total station berkualitas tinggi. Kemudahan penggunaannya membuatnya ideal untuk pekerjaan konstruksi seperti tata letak. Akurasi 2 detik membuatnya ideal untuk tugas survei dan pengukuran yang paling menuntut. Harganya yang rendah menjadikannya pilihan yang tepat untuk setiap anggaran.
Topcon Total Station Gowin TKS 202 Technical Spesifikasi :
| Model Name | Gowin TKS-202 | |
|---|---|---|
| Telescope | Objective Lens Diameter | 45mm (EDM: 50mm) |
| Magnification | 30x | |
| Image | Erect | |
| Field of View | 1°30′ | |
| Resolving Power | 3.0″ | |
| Min. Focus Distance | 1.3m | |
| Angle Measurement | Accuracy | 2″ |
| Method | Absolute | |
| Minimum Reading | 1″/5″ | |
| Distance Measurement | ||
| Distance Range | 1 Prism | 2,000 |
| 3 Prisms | 2,700m | |
| Accuracy | ±(+2mm + 2ppm x D**)m.s.e. | |
| Measuring Time | Fine Measurement Mode | 1.2 sec.(Intial 4 sec.) |
| Coarse Measurement Mode | 0.7 sec. | |
| Tracking Measurement Mode | 0.4 sec. | |
| Atmospheric Correction Range | Yes | |
| Prism Constant Correction Range | Yes | |
| Software & Memory | ||
| On-Board Software Functions | Data Collection, Resection, Road, Stakeout, Area Calculation, Height Measurement, etc. | |
| Internal Memory | 24,000 points | |
| Interface | RS-232C (Standard) | |
| Display | Display Unit | Graphics LCD, 2 Sides |
| Keyboard | 24-Alpha-Numeric Key | |
| Tilt Correction (Automatic Index) | ||
| Tilt Sensor | Yes | |
| Correction Method | Liquid Type | |
| Compensating Range | ± 3′ | |
| Level Senstivity | ||
| Plate Level | 30″/2mm | |
| Circular Level | 10′/2mm | |
| Optical Plummet Telescope | ||
| Image | Erect | |
| Magnification | 3x | |
| Focusing Range | 0.5 to infinity | |
| Field of View | 3° and above | |
| Others | ||
| Protection against water and dust*** | IP 54 (with BT-L1 Battery) | |
| Operating Temperature | -20°C~+50°C (-4°F~+122°F) | |
| Dimension | 336 (H) x 184 (W) x 172 (L)mm | |
| Weight (with Battery) | 4.8Kg | |
| On Board Battery | BT-L1 (Lithium-ion) | |
| Battery Charger | BC-L1 | |
| Maximum Operating Time | ||
| Including Distance Measurement | 14 Hours | |
| Angle Measurement Only | 60 Hours | |
| Output Voltage | DC 10V | |
Kelengkapan Gowin TKS 202 :
- 2x Alumunium Tripod
- 1x Prisma Polygon
- 1x Prisma Single
- 1x Range Pole
- 1x Cable Data
- 1x Charger
- 1x Batterai
Untuk dapatkan penawaran harga total station Gowin TKS 2o2 bekas kondisi normal bergaransi di Master Alat Survey.
