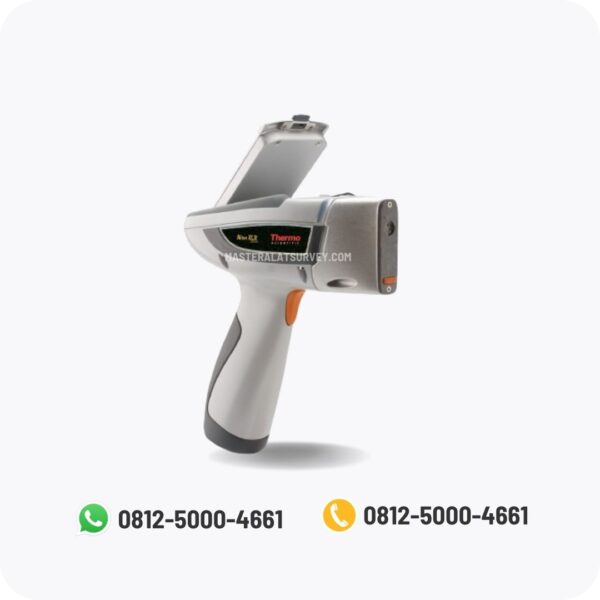

Thermo Niton XL3t Goldd+ XRF Analyzer

Kategori:

Thermo Niton XL3t Goldd + XRF Analyzer Industri mulai dari pertambangan dan eksplorasi hingga daur ulang besi tua bergantung pada analisis unsur yang cepat dan akurat. Thermo Scientific™ Niton™ XL3t GOLDD+ XRF Analyzer menyediakan data real-time yang andal untuk identifikasi sampel dan identifikasi material positif bahkan untuk elemen ringan yang sulit dianalisis, tanpa pembersihan helium atau pompa vakum.

Niton XL3t GOLDD+ Analyzer menghadirkan paket kaya fitur yang disempurnakan dengan teknologi Geometrically Optimized Large Area Drift Detector (GOLDD™) untuk analisis elemen cahaya (Mg-S) yang ditingkatkan, batas deteksi terendah, dan waktu pengukuran tercepat.

Specifications Thermo Niton XL3t Gold + XRF Analyzer


Catalog Number
Specifications Unit Size Price (MYR)
XL3TGOLDDPLUS Full specifications Each Request A Quote
Applications Sample identification and positive material identification
Analytical Range Up to 30 elements from Mg to U (varies by application)
Available Analytical Modes Varies by application:Alloy Modes: Metal Alloy, Electronics Alloy, Precious MetalsBulk Modes: Soil, Mining, TestAllPlastic Modes: RoHS Plastics, Toy and Consumer Goods, Plastics, TestAll, Painted ProductsCustom Modes: Upon request (bas
Data Memory 32MB internal system memory/128 MB internal user storage
Data Storage Internal >10,000 readings with spectra
Data Transfer USB, Bluetooth and RS-232 serial communication
Description Niton XL3t GOLDD+ XRF Analyzer
Detector Type Geometrically Optimized Large Area Drift Detector
Display Type Tilting, color, touch-screen display
Item Description XL3t GOLDD+ XRF Analyzer
Height (English) 3.75 in.
Height (Metric) 95.5 mm
Length (English) 9.6 in.
Length (Metric) 244 mm
Width (English) 9.05 in.
Width (Metric) 230 mm
Optional Accessories 3mm small-spot collimation; Portable test stand; stationary (benchtop) test stand; mobile test stand, Field Mate; Thermo Scientific™ Extend-a-Pole™; Welding mask; Thermo Scientific™ HotFoot™ hot surface adapter; Soil testing guard
Power Consumption 0 to 200µA
Security Features Password-protected user security
Standard Accessories Integrated CCD camera for locating and storing images; Locking shielded carrying case; Shielded belt holster; Two lithium-ion battery packs; Spare battery pack; 110/220 VAC battery charger/AC adaptor; PC connection cables (USB and RS-232); Thermo Scientific™ Niton Data Transfer (NDT™) PC software; Safety lanyard; Check samples/standards
Tube Type Ag anode 50 kV and 200 µA
Tube Voltage 6 to 50 kV
Weight (English) 3 lb.
Weight (Metric) 1.3 kg
Voltage 6 to 50 kV
System Electronics 533 MHz ARM 11 CPU, 300 MHz dedicated DSP, 80 MHz ASICS DSP for signal processing
Data Entry Touch-screen keyboard, user-programmable pick lists, optional wireless remote barcode reader
Licensing Varies by region. Contact your local distributor.
Dimensions (L x W x H) 9.6 x 9.05 x 3.75 in. (244 x 230 x 95.5 mm)
Certifications/Compliance CE, RoHS
Unit Size Each

Performance:

GOLDD Technology: When low detection limits and high sample throughput are critical, the Niton XL3t GOLDD+ XRF analyzer delivers measurement times up to 10-times faster than conventional Si-PIN detectors and up to 3-times more precise than conventional smaller silicon drift detectors (SDD) – without helium purge or vacuum. For further enhancing light element analysis, a helium purge option is available. Niton analyzers also feature the highest performance X-ray tube and speed detector available on the market.

Wide Range of Applications:

Scrap Metal Recycling:Sorts aluminum, titanium and bronze alloys, and achieves superior performance for tramp and trace element analysis.

Mining Exploration: Fast, accurate analysis of light elements. Identifies anomalies near the averages naturally found in the earth’s crust. Facilitates advanced exploration and soil analysis, concentrate measurement, ore blending, precious metal identification and lab analysis prequalification.

Environmental: Detects contaminants such as chlorine and sulfur in sediment and arsenic in soil. Identifies environmental hazards in residential, commercial and industrial settings, such as toxic drywall.

fitur

  • Rentang analitis standar: Hingga 30 elemen dari Mg hingga U (bervariasi tergantung aplikasi).
  • Tabung sinar-x paling kuat di pasaran untuk analisis XRF genggam.
  • Kesederhanaan point and shoot- sangat mudah digunakan bahkan oleh personel nonteknis.
  • Desain yang kokoh untuk lingkungan industri dunia nyata.
  • Analisis tak rusak dengan hasil yang hampir seketika.
  • Disegel terhadap kelembaban dan debu.
  • Dirancang secara ergonomis.
  • Ikon yang dapat dibaca di siang hari.
  • Menggabungkan pilihan multi-bahasa.
  • Warna, tampilan layar sentuh.

Konektivitas:

  • Perangkat lunak PC Standard Thermo Scientific™ Niton Data Transfer (NDT™) memungkinkan Anda mengatur izin operator, membuat laporan khusus, mencetak sertifikat analisis, atau memantau dari jarak jauh, dan mengoperasikan instrumen secara handsfree dari PC Anda.
  • Komunikasi USB dan Bluetooth™ terintegrasi menyediakan transfer data langsung ke PC atau perangkat penyimpanan jaringan Anda. Aksesori opsional termasuk pembaca kode batang Bluetooth, printer Bluetooth, dan GPS Bluetooth.
