Deskripsi
Brand
Ulasan (2)
Deskripsi
| Berat | 35 gram |
|---|---|
| Dimensi | 330 × 104 × 83 cm |
| SKU | NTS332R10 |
| Kategori | Total Station |

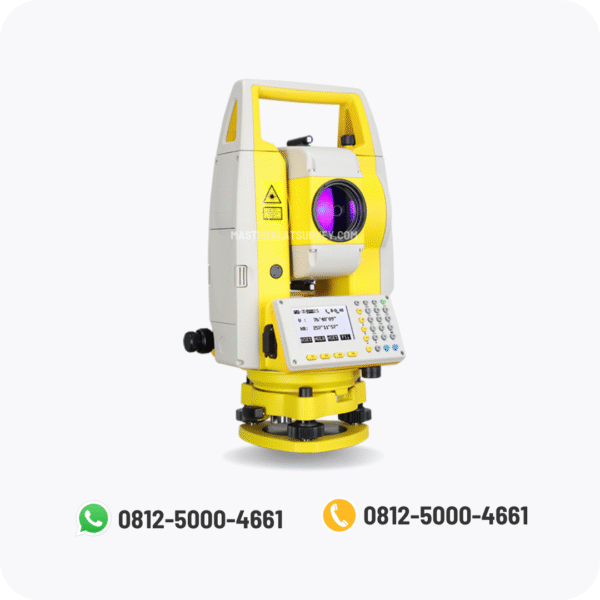

Dapatkan kemudahan dengan menggunakan total station south nts 332r10 segala pengukuran lahan dan bangunan lebih cepat dan akurat tanpa perlu menggunakan teknik manual dengan bendang yang akan memakan waktu lama dan pasti banyak kesalah terjadi yang akan merepotkan.
Fitur Total Station South NTS 332R10
- Fast and Powerful Reflectorless EDM
- Fast and accurate 1000m reflectorless range.
- Fast distance measurement of 1.2s.
- Smaller laser pointer for minimal measuring error.
Easy-to-Read LCD Screen
With ergonomic keypad, NTS-332R10 provides a comfort user experience when operation, regardless of environment.
Simple But Practical Onboard Software
NTS-332R10 offers a quick response and clear feedback for its onboard software, like data input, measurement, stake out and roads
Easy Connectivity
- USB memory stick
- Bluetooth transfer
Specification Total Station South NTS 332R10
| Distance Measurement | Reflectorless | 1000m |
| Single Prism | 5000m | |
| Accuracy: Non Prism | 3+2ppm | |
| Accuracy: Prism | 2+2ppm | |
| Sheet | 3+2ppm | |
| Measurement Time | 1.2s in fine 0.2s in tracking | |
| Atmospheric Correction | Manual input, Auto correction | |
| Prism Constant | Manual input, Auto correction | |
| Temperature Correction | Manual input, Auto correction | |
| Distance Reading | Max: 99999999.999 Min: 1mm | |
| Angle Measurement | Accuracy | 2″ |
| Method | Absolute, continuous | |
| Disk Diameter | 79mm | |
| Detection Method | V: Dual, H: Dual | |
| Angle Reading | Min: 1″ | |
| Telescope | Image | Erect |
| Tube Length | 152mm | |
| Effective Aperture | 45mm (EDM 47mm) | |
| Magnification | 30x | |
| Field Of View | 1°30′ | |
| Resolving Power | 3″ | |
| Minimum Focus Distance | 1.5m | |
| Muitiple/Additive Constant | 100/0 | |
| Keyboard And Display | Keyboard | Alphanumeric 28 Keys |
| Display | 2.7 inches Black & White LCD | |
| Resolution | 160*96 dpi | |
| Position | Face 1, Face 2 | |
| Operation System | Operation System | None |
| Processor | None | |
| Memory | 16000 points | |
| Interface | WIFI | None |
| Bluetooth | None | |
| SD Card | None | |
| Serial Port | None | |
| Mini USB | None | |
| Mirco USB | Yes | |
| USB Flash Disk | None | |
| SIM Card | None | |
| Compensator | System | Liquid, Dual axis |
| Working Range | ±6′ | |
| Accuracy | 1″ | |
| Plummet | Laser Plummet (Default) | |
| Accuracy | ±1.5mm @1.5m | |
| Laser Brightness | 5 levels adjustable | |
| Wavelength | 635nm | |
| Laser Class | Class 2 | |
| Laser Power | 0.5mW | |
| Optical Plummet (Optional) | ||
| Image | Erect | |
| Magnification | 3x | |
| Focusing Range | 0.5m ~ ∞ | |
| Field Of View | 5″ | |
| Accuracy | – | |
| Battery | Type | Lithium |
| Voltage | 7.4V | |
| Operating time | 8 hours | |
| Vial | Plate Vial | 30″ /2mm |
| Circular Vial | 8′ /2mm | |
| General | IP Rate | IP54 |
| Temperature Range | -20°C — +50°C | |
| Dimension | 206*200*353mm | |
| Weight | 6.0kg | |
| Others | – | |
| Others | – | |
| Others | – |
Note: all information above is subject to change without any prior notice.
Kelengkapan :
- 2x Alumunium Tripod
- 1x Prisma Polygon
- 1x Prisma Single
- 1x Range Pole
Stok terbatas dan dapatkan diskon harga jual total station south nts 332r10 hanya di masteralatsurvey.com kontak admin sekarang.
Masteralatsurvey.com bisa support pengiriman dengan aman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
Dapatkan produk total station lainnya di masteralatsurvey.com
